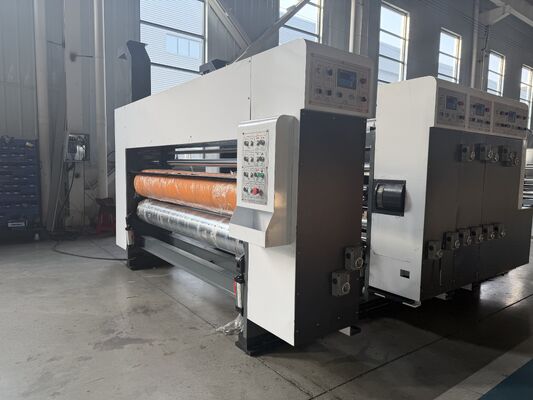

GYM-920 Automatic Lead Edge Feeding Flexo Printing Slotting Machine with 100-130m/min Speed and 7-inch Color Touch Screen

The GYM-920 Automatic Lead Edge Feeding Flexo Printing Rotary Slotting Machine is a high-performance industrial solution designed for precision printing, slotting, and die-cutting operations in corrugated cardboard production.

• Advanced Taiwan Province leading edge paper feeding technology with bearing steel material
• 7-inch color touch screen with man-machine interface for comprehensive control
• Frequency converter controllable suction and dust removal fans for optimized power consumption
• Electric adjustment for left/right stop gauges and cardboard dragging frame
• Pneumatic interlocking safety devices with overload protection
• High-quality seamless steel pipe rollers with two-layer rubber coating

• Diameter: < ￠524mm (including plate diameter < ￠536mm)
• High-quality steel construction with hard chromium plating
• 360° electric phase adjustment with automatic zeroing device
• 6mm axial electric adjustment for precise plate alignment

• High-quality seamless steel pipe with precision grinding and electroplating
• Backlash-free adjustment mechanism for transmission accuracy
• Manual micro gap adjustment with scale display

• Cantilever structure for easy installation and maintenance
• Manufactured by "Haili Roller" with 200-280 lines/inch mesh options
• Pneumatic pressing action with automatic lifting
• Optional ceramic net roller (200-400 lines/inch)

• One-way diaphragm type pneumatic ink pump with filtration
• Automatic ink quantity sensing with alarm system
• Transparent ink supply pipes and storage cups

• Touch screen operation with PLC programming automation
• Six-axis full computer-controlled slotting system
• Single-shaft double-knife slotted structure
• 7mm standard thickness alloy steel grooving knives
• Linear guide rail technology for precision slotting
• Electric 360° phase adjustment during operation or stop

• Knife plate roller outer diameter: < ￠486mm
• High-quality cast steel construction with surface grinding
• Electric gap adjustment between knife die and rubber pad rollers
• Electric grinding mechanism for rubber pad maintenance
• 360° electric phase adjustment capability
• High-precision helical gear transmission system

• Main motor: "Dongli" frequency converter controlled
• Frequency converter: "Taiwan Province Delta"
• Main bearings: Imported "NSK" bearings
• Electrical components: Zhejiang Zhengtai or Schneider
• Pneumatic components: Yadeke brand

Our machines are packaged with moisture-proof and shock-proof materials suitable for long-distance transportation under various weather conditions. Each shipment includes a complete set of maintenance and operation manuals.
