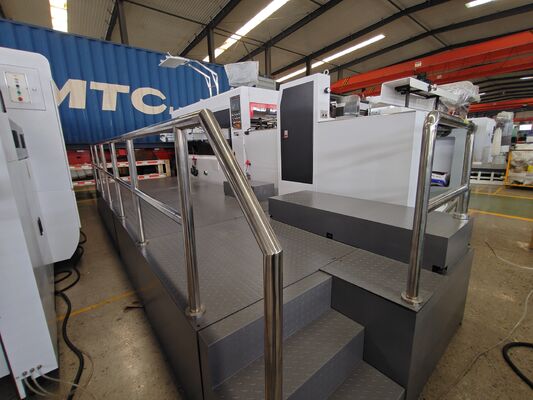

High Precision Corrugated Carton Die Cutting Machine with Lead Edge Feeder and Rikko Light Front Lay Detection

1 세트
MOQ
To be negotiated
가격
High Precision Corrugated Carton Die Cutting Machine with Lead Edge Feeder and Rikko Light Front Lay Detection
풍모 갤러리 제품 설명 Ratings & Review 따옴표를 요구하십시오
풍모
제품 사양
보증: 1년
유형: 오토매틱
속도: 0-80 조각/분
상태: 새로운
판매 후 서비스 제공: 온라인 지원, 비디오 기술 지원
용법: 다이 커팅 페이퍼
색상: 하얗고 회색입니다
포장 유형: 플라스틱, 나무
기본 정보
원래 장소: 중국
브랜드 이름: GR
인증: CE, ISO
모델 번호: MY1500
결제 및 배송 조건
포장 세부 사항: 나무 케이스 포장(선택 사항) 또는 잘 포장된 플라스틱 필름 포장
배달 시간: 30-40 일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 10 세트/월
제품 설명
High Precision Corrugated Carton Die Cutting Machine with Lead Edge Feeder and Rikko Light Front Lay Detection System
MY1500 Automatic Die Cutting And Creasing Machine
Lead Edge Feeder (Under Suction Feeder)
  • Prevents cardboard damage by eliminating black wheels
  • Independent servo actuator ensures precise cardboard positioning and prevents paper crashes
  • High-power suction fan with adjustable wind system for 3-9mm corrugated boxes
Feeding Table
  • Adjustable brush wheels and pressing wheels for precise front and side lay positioning
  • Advanced push and pull lay registration for die cutting precision
  • Rikko light front lay detection system prevents slanted paper entry
  • Cylinder-controlled brush wheel frame lifting for easy operation
Main Body
  • Automatic centralized lubricating system with HMI-controlled main chain lubrication
  • Patented shock absorption system prolongs machine life and increases pressure
  • Taiwan-made intermittent gearbox ensures accurate registration and reduces gripper attack
Stripping Section
  • Double action movement structure with upper and lower stripping frames for easy die changes
  • Male/female diecutter models available for different carton types
  • Centerline registration system in both diecutting and stripping sections
  • Gripper front edge waste removal system for higher production efficiency
Die-Cutting & Delivery System
  • Diecutting chase fixed accurately by pneumatic lock system
  • Air floating device for diecutting plate insertion and removal
  • Electric clutch system ensures chain stability during high-speed stops
  • PLC-controlled periodic lubrication of main and assist chains
  • Protection window keeps main body clean
  • Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains
Paper Collecting System
  • Back and side aligning paper systems for orderly automatic paper feeding
  • Electric back aligning paper adjustment - three times faster than manual operation
  • Double detection switch monitors paper order
  • Sample collection capability during machine operation
  • Automatic alarm when paper collecting reaches capacity
  • Quantitative paper setting from 10 to 9999 sheets with automatic shutoff
High Precision Corrugated Carton Die Cutting Machine with Lead Edge Feeder and Rikko Light Front Lay Detection 0
Technical Specifications
Item Parameters
Model MY-1500
Die Cutting Type Pressed flat die cutting (Lower side movable, upper side unmovable)
Max Paper Transmitting Size 1510 × 1120 mm
Min Paper Transmitting Size 450 × 400 mm
Max Die Cutting Size 1490 × 1100 mm
Min Gripper Size 6-8 mm
Max Die Cutting Pressure 380 N/cm²
Paper Processed Corrugated board: 1-10mm
Max Die Cutting Speed 5000 sheets/h
Max Feeding Pile Height 1400 mm (above the level)
Min Feeding Pile Height 1250 mm (above the level)
Main Motor Power 11 kW
Total Power 18 kW
Total Weight 16.5 T
Overall Size 6900 × 2500 × 2346 mm (without platform and pre-paper)
8100 × 4400 × 2346 mm (with platform and pre-paper)
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Includes complete set of maintenance and operation manuals
